3d scan graph window

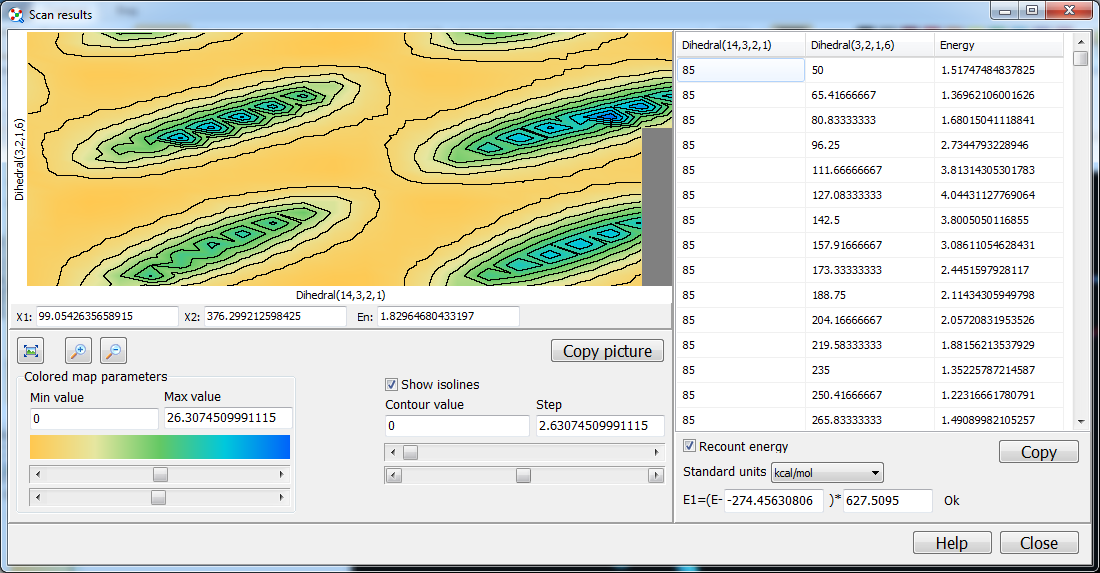

            In this window the 3d graph of relaxes PES surface scan is drawn:

           Form interface: right-click to scroll the image, left-click to zoom/unzoom the image.

           The values of color map parameter and isolines contour values can be altered either via track bars or via editing this values in the textboxes and pressing Enter.

            When a PES scan of dihedral angles is performed in Gaussian, the values of angles step over from 180 degrees to -180 degrees; because of that, for visualization in Chemcraft the step of scanned angle must be specified multiple to 360 degrees (otherwise Chemcraft will consider the values of angles in the scan non-equidistant).
